Welcome to TES BV


TES has a unique service when it comes to plating and polishing moulds, as it can polish over developped C1-TOP COATING and even titanium plating, extending the life of the mould almost indefinitely.

Even by the standards of the replication industry, Dutch based TES is something of a specialist. In operation for more than twenty years, it supplies and manufactures a wide range of parts at extremely competitive prices. This includes moulding parts, contact rings for galvanic systems, silicon rings for printing machines, and UV bulbs which TES sells to countries as far afield as Australia, South Africa, Far east and the U.8A

S uction cups, targets and masks for sputtering and hydraulic valves am other lines for TES, which is the European agent for US manufacturer Soleras as weil. TES has a unique service wh en it comes to plating and polishing moulds, as it can polish their C 1- TOP COATING and even extending the live of the mould almost indefinitely. TES offers this service in conjunction with a company which has honed its skilis through meeting the exacting optical requirements.

tes-bv


tes-bv is netherland based manufacturer and suppliers company. tes-bv offers moulding parts, suction cups, filters, printing pads to overseas markets as Australia, South Africa, Far east and the USA, TES -bv offers this service in conjunction with a company which has honed its skilis through meeting the exacting optical requirements.

TES-bv managing director Huub de Roo explai ns. "The mould surface on the fixed side is very easy to scratch. To prevent this we developped a so called C1-TOP COATING which is three times harder then the original material. After we put on this coating we polish it again

Benefits are

  • Surface is three times harder then the original material.
  • Very scratch resistant.
  • Longer lifetime of the mould up to three times.
  • The surface structure is much smoother than that of the mould material.
  • The CO releases easier from the mould.

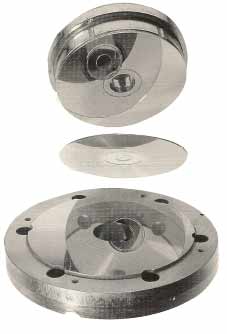

TES makes new moulding parts for all types of machines, including Krauss Maffei, AWM, Toolex Alpha, ICT Axxicon and OOME. While it always strives to find wide applica- -tions fc:irits products, it will customise parts and even make oneoffs.

Click for view Pdf

TES supplies products for many different industries, for example:

  • Printing
  • Semi ConductorCD Replication
  • Laboratories
  • Clean Rooms
  • Plastics (Moulding)
  • Car Paints (Standox and Dupont)
  • 3M CarproductsOriginal
  • Toner Cartridges
Special Coatings
  2014-06-30

In the diagrams below you can find corrosion levels of various materials in a strong halogen HCl/HF acid mixture (representative for many harsh corrosive conditions). Note, strong oxidizing agents such as HNO3 can often practice a protective effect on chromium or high chromium containing steel.

  2014-07-31

Both hard and corrosion resistant Lunac 1 and 2+ industrial coatings stay fully crack- and pore-free in the case the substrate is 1- free of serious defects and 2- ground smoothly in advance (Rz< 2.0 µm / 0.079 mil). The latest introduced technical hard nickel intermediate coating offers ultimate repair capability of surface micro-defects. Good corrosion resistance can not only be obtained by higher electro-potentials or dense oxide layers, but also by means of stress-free lattices, or even better, amorphous structures. In this way a material or coating with a lower electro-potential but crystal free structure can often deliver the same corrosion resistance as a more noble crystalline material. The additional advantage of such system is less galvanic corrosive activity and substantial cost savings. There are Lunac versions with no crystalline structure and small potential differences with steel. Moreover, hard coatings such as the Lunac systems which contains crack inhibiting compressive stresses are very rare. The latest Lunac 2+ duplex version even resists corrosion after plastic deformations because of the ductility of the intermediate technical hard nickel and the superb bond quality.

  2014-07-31

In reality coating damage due to accidents is likely to happen or coating / substrate transitions are present (end of coating). In a corrosive environment almost all protective noble (metallic) coatings will accelerate the steel (galvanic) substrate corrosion in these damaged spots. As a reference, passive organic coatings (paintings) show a neutral behavior. Lunac 2+ duplex coatings are optimized to come as close as possible to these passive coatings and do not show significant sub-surface corrosion.

Read More...
